Cincinnati Vertical Milling Machine, No. 5, 20" x 94" table - $20,000

‹ image 1 of 12 ›
Cincinnati Vertical Milling Machine, No. 5, 20" x 94" table 1
Cincinnati Vertical Milling Machine, No. 5, 20" x 94" table 1 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 2 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 3 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 4 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 5 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 6 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 7 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 8 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 9 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 10 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 11 thumbnailCincinnati Vertical Milling Machine, No. 5, 20" x 94" table 12 thumbnail
condition: good
make / manufacturer: Cincinnati
model name / number: No. 5 Vertical Milling Machine

QR Code Link to This Post

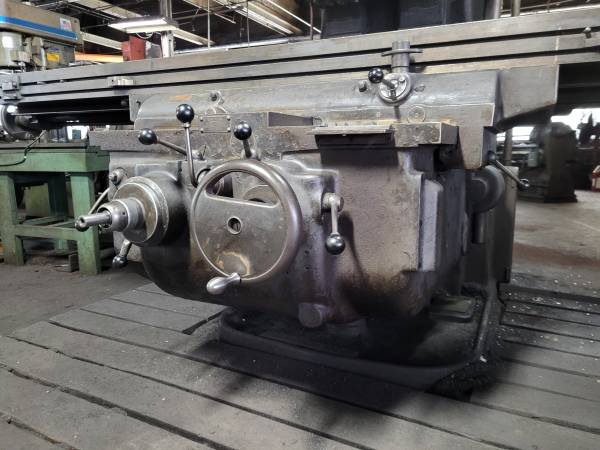

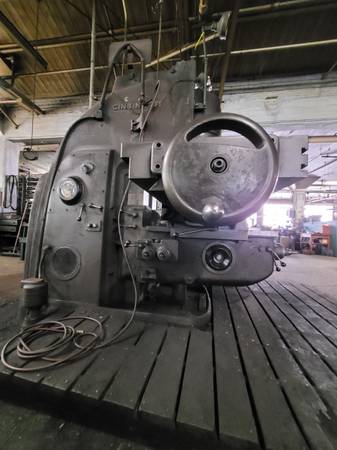

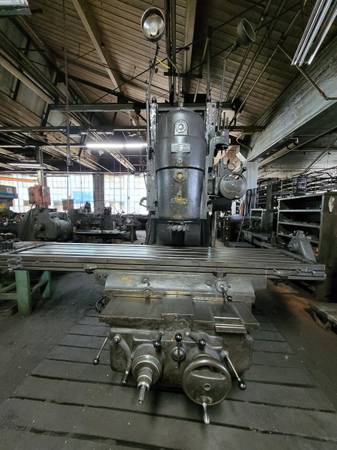

Cincinnati Model No. 5 Vertical Milling Machine

I understand that it held 0.003" per 2.5'of horizontal travel
lubrication reservoir in the head leaks.
Rotary attachment (link bar is is missing, but could be fabricated, if needed)
Equipment is powered up.
Various cutters can be provided with the machine. The photo shows a collection of cutters which is part of other machines. We can discuss it.

Video:
https://www.youtube.com/watch?v=PszJJ2R97OI

Table 20″ x 94.5″
Longitudinal travel 50″
Cross travel 18"
Knee vertical travel 16″
Head vertical travel 8″
Spindle speeds 14 to 1400 (24)
mt taper in spindle #50


t-slot 3 12/16" / 3 1/4" ctr-ctr

25 hp / 220 / 440 / 3 ph motor

17, 100 lbs. Approx. Weight

108″ W x 106″ H x 108″ L

AC Power 220/3 phase

Serial Number: 4J5V1U-2

We can coordinate a rigging company to quote a price for you.

All specifications to be verified by buyer.

Interested buyers can view the items through an appointment. If interested, please provide your name and phone number and any offer(s). Thank you for your interest.
