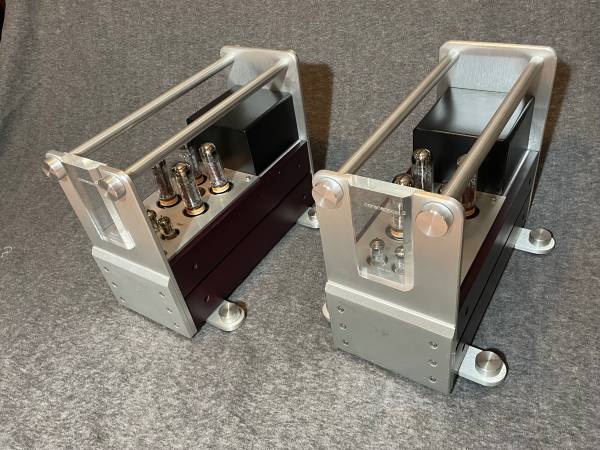

Opera Audio Consonance Cyber 800 Mono Amplifiers - $1,500
QR Code Link to This Post

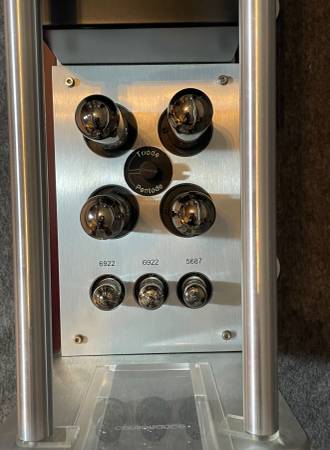

Tube compliment:
JJ E34L x 8
JJ 6922 Gold Pin x 4
JAN 5687 x 2
From the Consonance website:
Theory of Operation
The amplifier is a push-pull Class AB mono power amplifier with two pairs shunt-wounded EL34 output power tubes per channel. It uses little global feedback. Signal goes first to the 6922 dual triode acted as input stage, then to the 6922 dual triodes acted as double drive stage. The 5687 drive the EL34 output tubes which are transformer-coupled to the load (In this case, the speaker.).
Power output: 78 watt x 2 Ultra-linear
Total Harmonic Distortion: less than 1% (50 watt, 1KHz)
Frequency Response: (-3dB points at 50 watt) 6Hz-100Hz
Input Sensitivity: 700mV
Input Impedance: 100K ohms
Output Impedance: 4, 8 ohms (User selectable)
Signal/Noise: 90dB
Consumption: 90 watt x 2

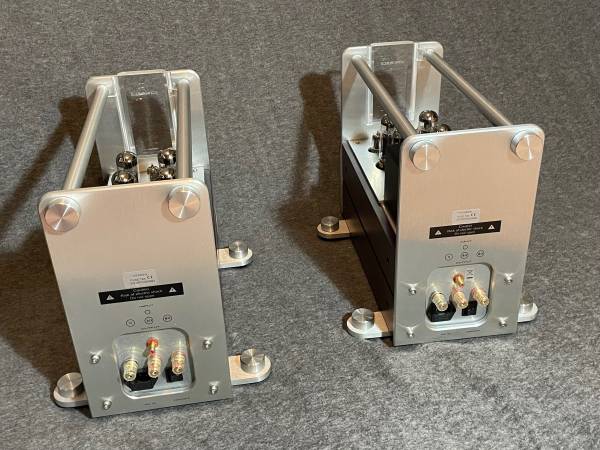

Input Interfaces: RCA
Vacuum Tube: EL34/6CA7 x 8, 5687 x 2, 6922 x 4
Weight: 66 lbs x 2
Prefer local sale as I do not want to ship these.
